8mm Mini Endoscope Camera IP67 Waterproof Borescope
Main Feature
Description +
An Endoscope Camera for Hard-to-Reach Inspection
The HD22 is an endoscope camera built around an 8mm waterproof probe, designed for looking inside engines, pipes, walls, and other tight spaces that a normal camera can't reach. As a borescope, it connects directly to your phone rather than needing a separate screen.

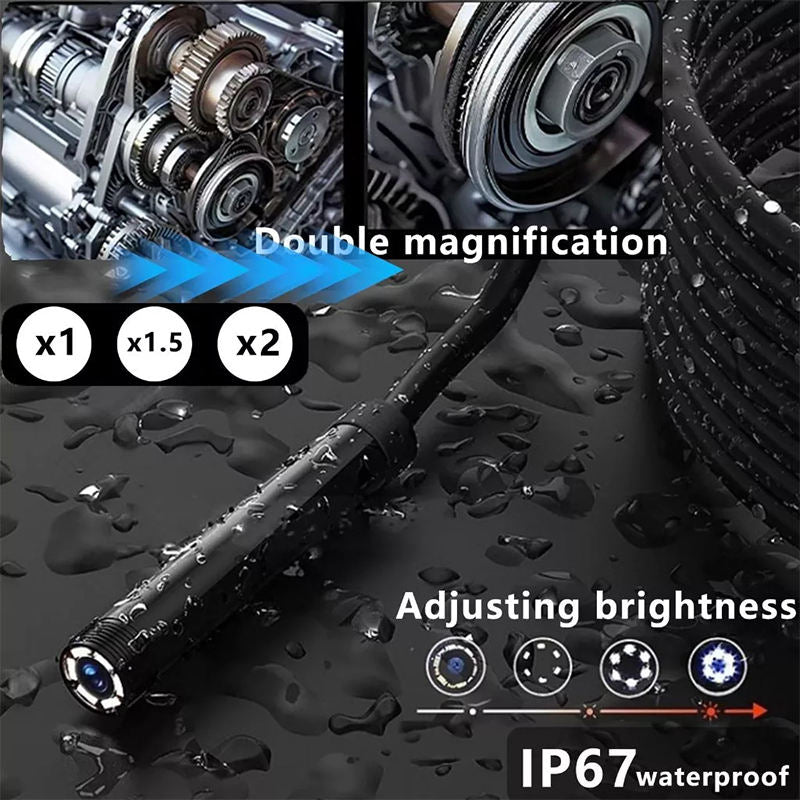

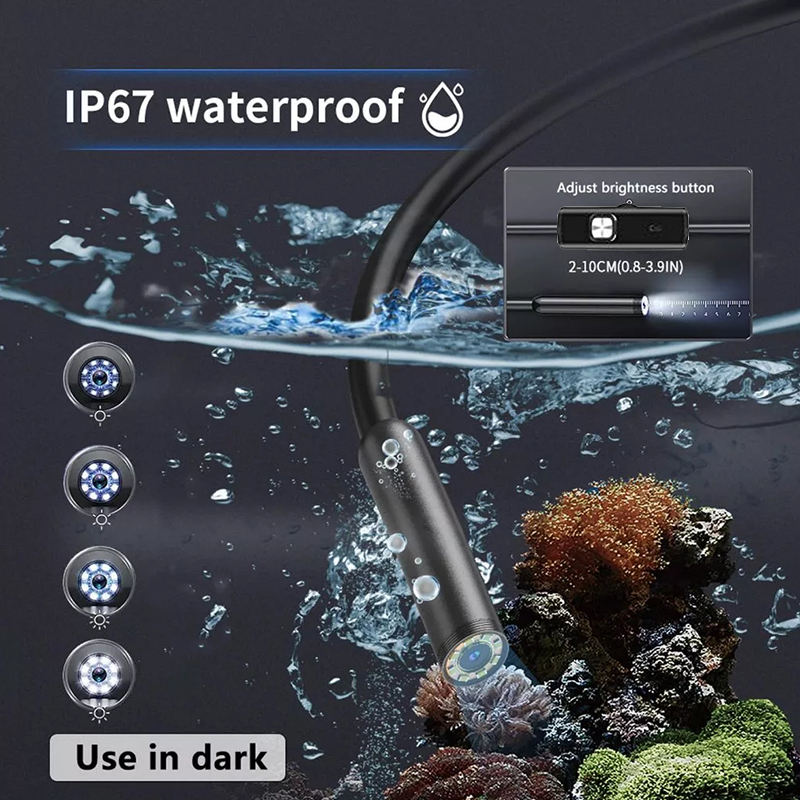

IP67 Waterproof Probe with 8 LED Lights
The probe carries an IP67 waterproof rating, so it can be used in wet or submerged inspection points, and 8 built-in LED lights illuminate dark cavities as you work. Field of view is 68°, with a focus range of roughly 20–100mm from the lens.

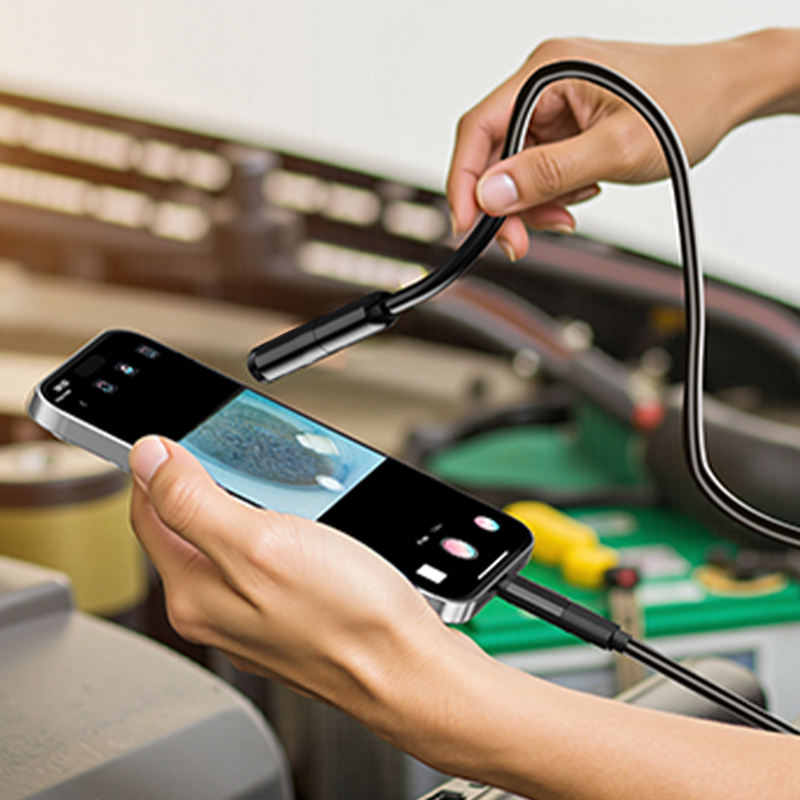

Works with iOS and Android

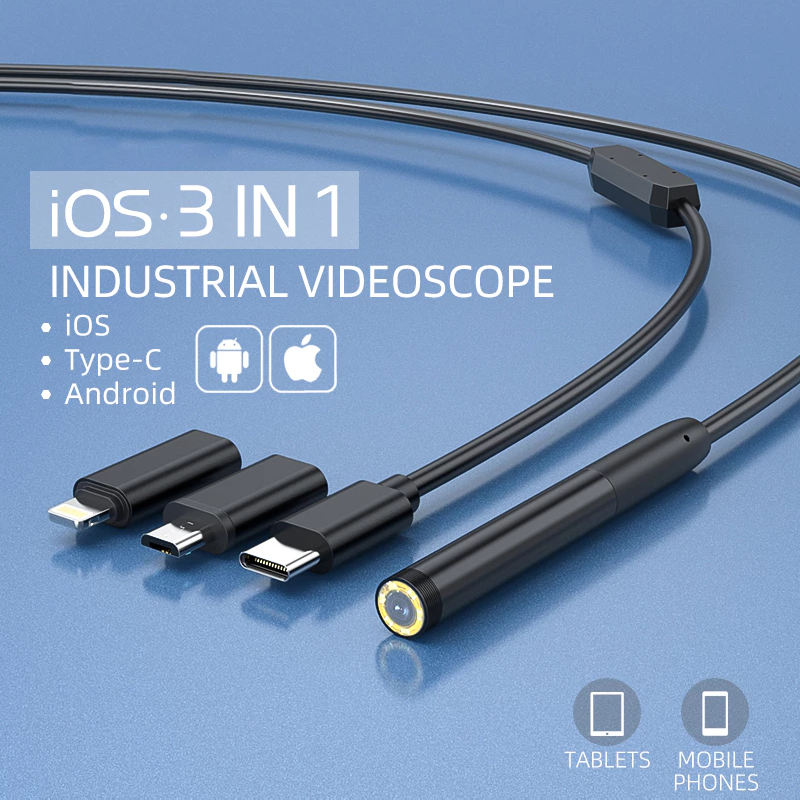

The endoscope camera connects over a wired cable with USB-C, Micro-USB, and Lightning adapters supplied (visible in the product photos), so it plugs directly into most Android phones, iPhones, and USB-C laptops without a separate app subscription; a plain endoscope camera app for Android or iOS handles the live feed and recording. It records to MP4 video and JPEG photos.
Multiple Probe Lengths

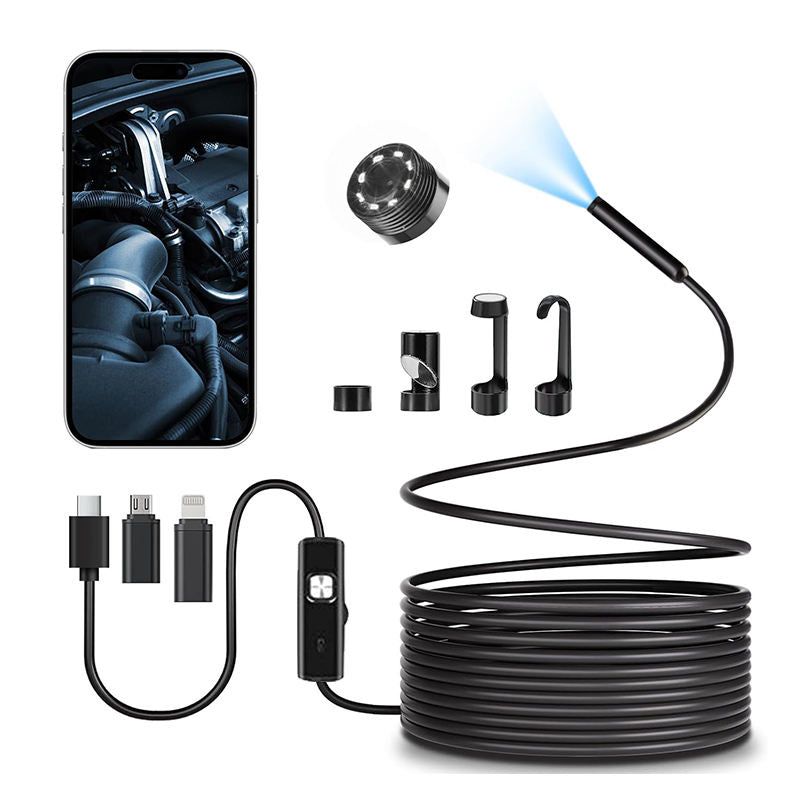

The camera cable (the inspection line) is available in 1m, 2m, 3.5m, and 5m lengths, and the kit includes attachments such as a hook, magnet, and mirror for retrieving or angling around obstacles, as shown in the product photos.
Need Help Choosing?
Not sure if the HD22 endoscope camera fits your inspection job? Contact Smaronics support before ordering.
Specifications +
| Product Name | HD22 Mini Endoscope Camera |
|---|---|
| Model | HD22 |
| Product Type | Endoscope / Borescope Camera |
| Pixels | 2 million (2MP) |
| Lens | Single lens |
| Field of View | 68° |
| Depth of Field / Focal Range | 20–100mm |
| IP Rating | IP67 (waterproof probe) |
| Illumination | 8 built-in LED lights |
| Compatible System | iOS, Android; USB-C laptops via included adapters |
| Video Format | MP4 |
| Image Format | JPEG |
| Probe / Line Length | 1m, 2m, 3.5m, 5m (variant options) |
| Operating Temperature | -20°C to 70°C |
| Packaging Size | 13.5 x 13.5 x 4 cm |
| Gross Weight | 0.22 kg |
